Soffit Flashing Detail: Installation and Design Essentials

Roof flashing dimensions depend on roof pitch, material, and local codes, often requiring several inches of coverage. For our specialized masonry joint flashing, sizing is based on joint width, with stock sizes available for joints from under 3/8 inch to 1 1/2 inches to ensure proper coverage and sealant protection.

Our soft lead caps are installed over sealant-filled joints, shielding the sealant from UV radiation and weather. This extends its service life by preventing premature failure. The system also reduces the effective joint opening, minimizing strain during building movement and preventing margin checking along the masonry edge.

Type A (Flat Cap) is for joints where masonry units are in the same plane, like the top joints of copings and window lintels. Type B (90° Cove Cap) is for right-angle joints, such as where a projecting cornice meets a vertical wall, around door frames, or at window sill-to-masonry junctions.

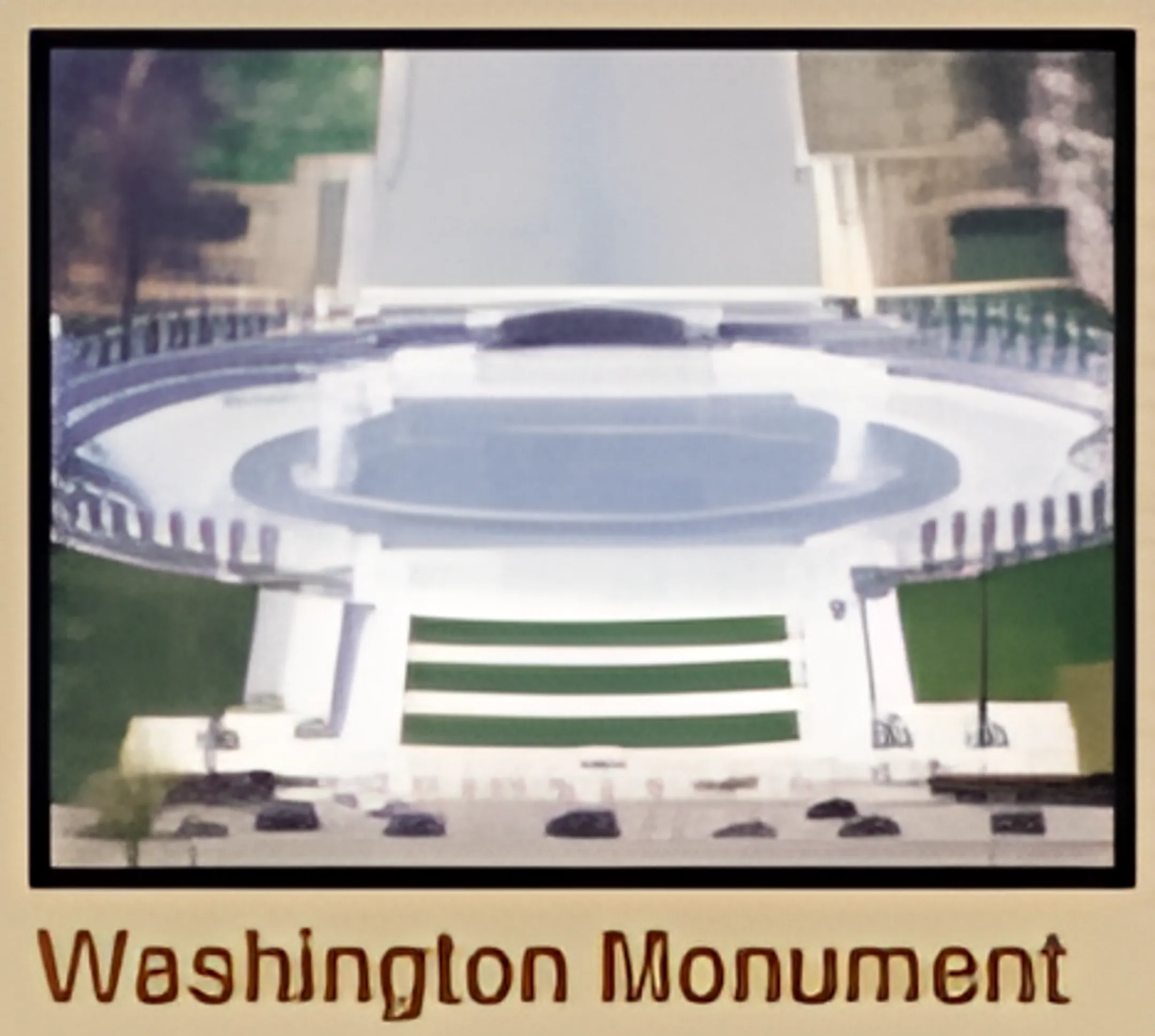

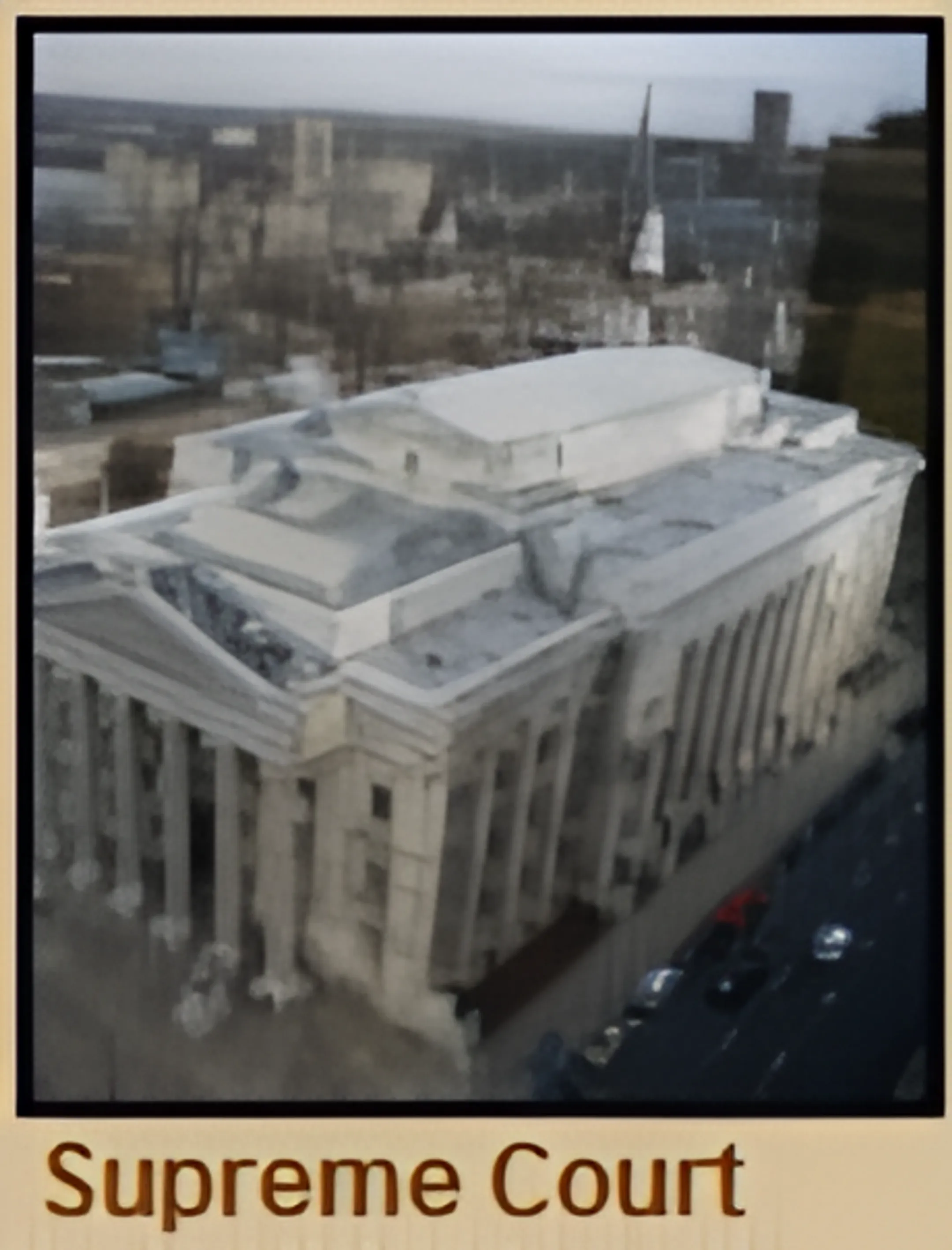

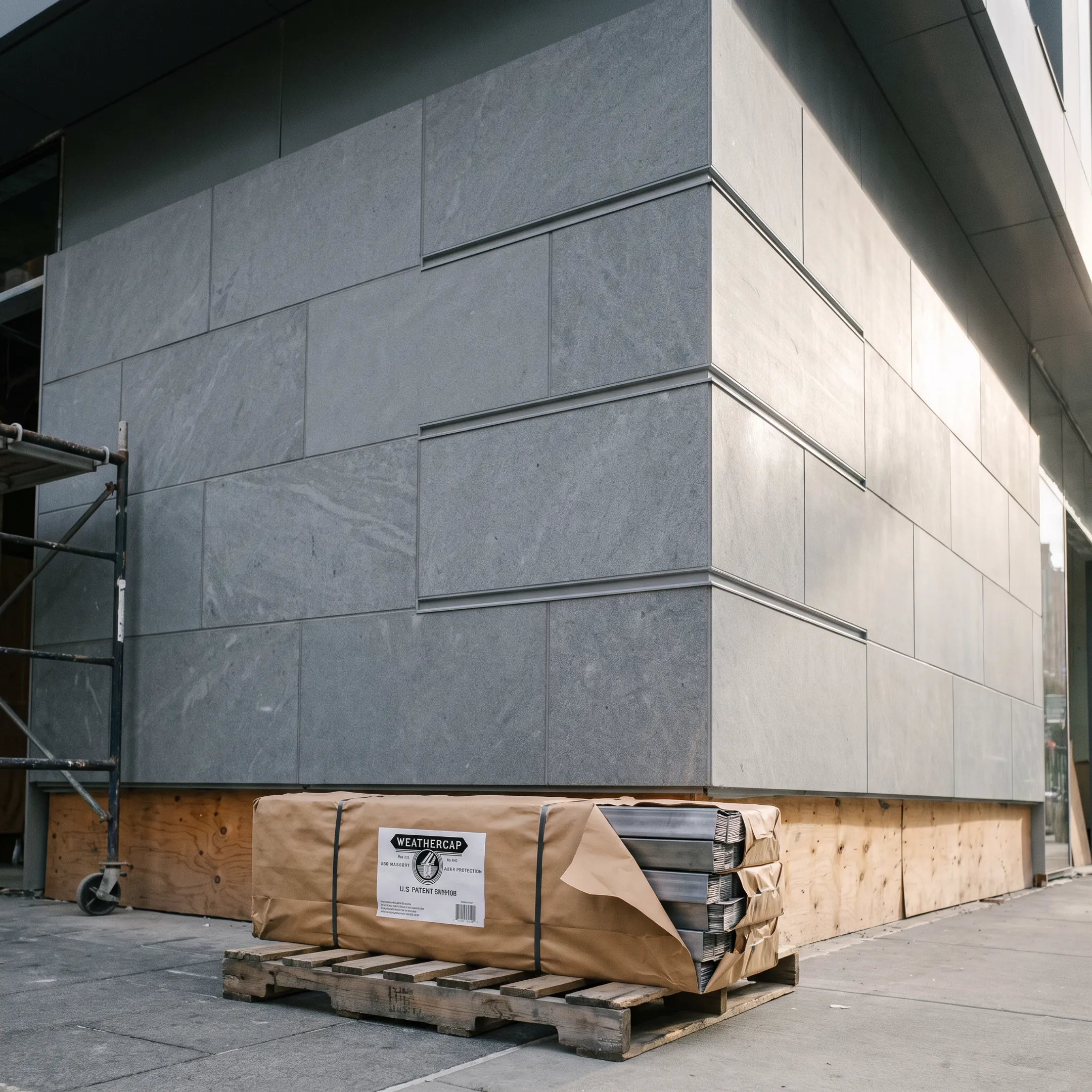

Yes, WEATHERCAP® is ideal for both historic restoration and new construction projects. It provides durable, long-term protection for vulnerable masonry joints from day one. Our A-2 Type A cap is specifically designated for new construction, and other profiles can be specified based on architectural design requirements.

Yes, our lead flashing caps can be painted to match surrounding masonry or architectural trim. If left unpainted, the surface naturally oxidizes to a neutral grey color that blends discreetly with most stone and masonry, providing a seamless, unobtrusive finish while ensuring full protection for the joint.

All WEATHERCAP® products are supplied in standard 6-foot lengths, which can be easily cut to size on-site. Materials are typically shipped within 48 hours of order placement to keep your project on schedule. We offer a range of stock sizes and can also discuss custom configurations for unique project needs.
