Masonry and Stone Joint Protection Systems

Head joints are the vertical mortar gaps between bricks in a single row (course), while bed joints are the horizontal layers of mortar on which the bricks are laid. Together, they form the complete mortar matrix that bonds a masonry wall, providing structural integrity and weather resistance.

Common joints include concave, V-shaped, and raked joints for aesthetics and weather resistance. For structural integrity, control and expansion joints are critical to manage movement. Protective systems like WEATHERCAP® are used within these joints to shield the sealant and enhance long-term durability.

WEATHERCAP® is a soft lead cap installed over sealant in a masonry joint. It physically shields the sealant from UV radiation and weather. Its flexibility accommodates building movement, reducing stress on the sealant bead, which prevents margin checking and significantly prolongs the sealant's effective life.

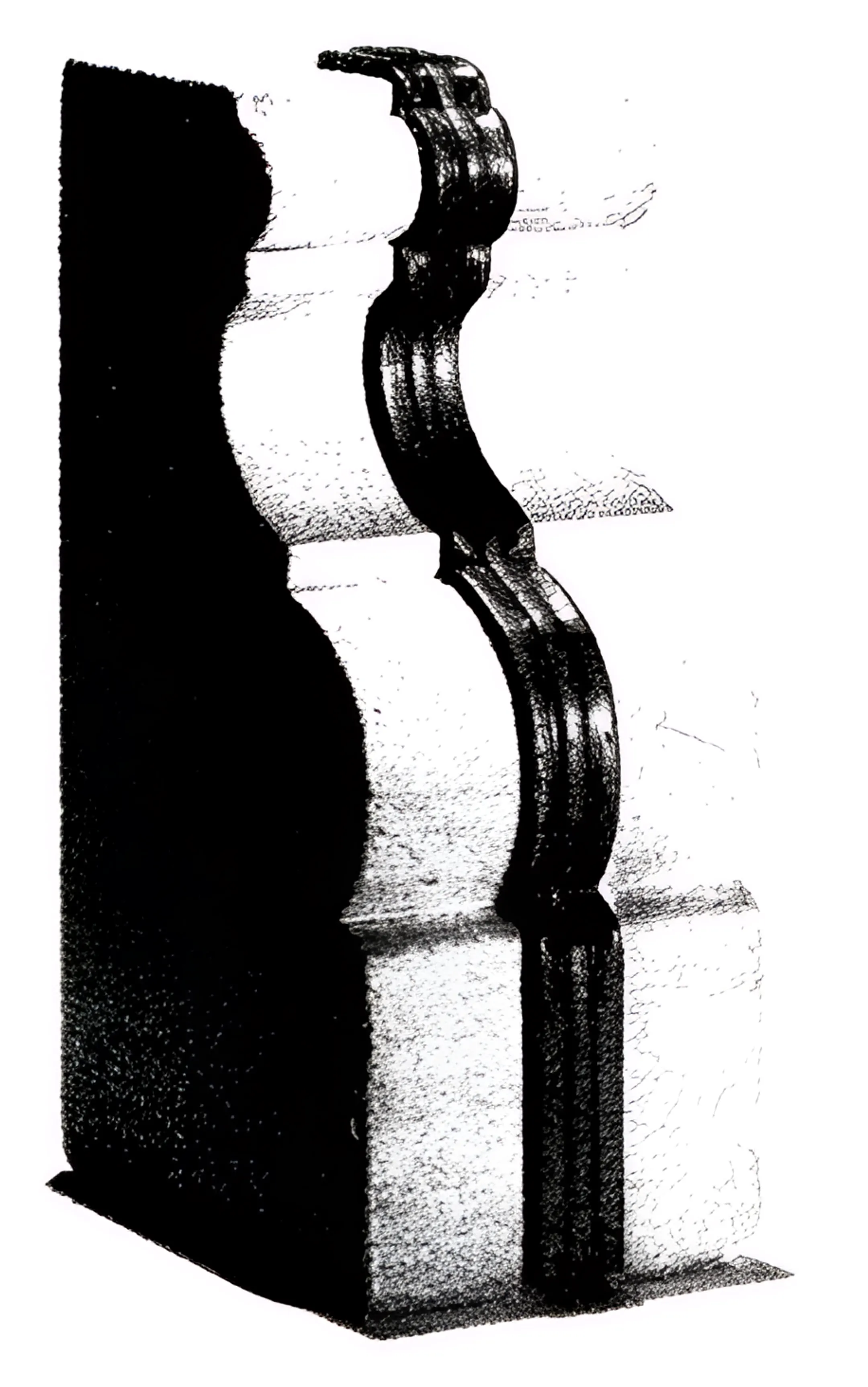

Type A (Flat Cap) is for joints between masonry on the same plane, like top joints on copings and cornices. Type B (90° Cove Cap) is for right-angle joints, such as where a horizontal window sill or water table meets a vertical wall, providing a continuous, protected seal at the intersection.

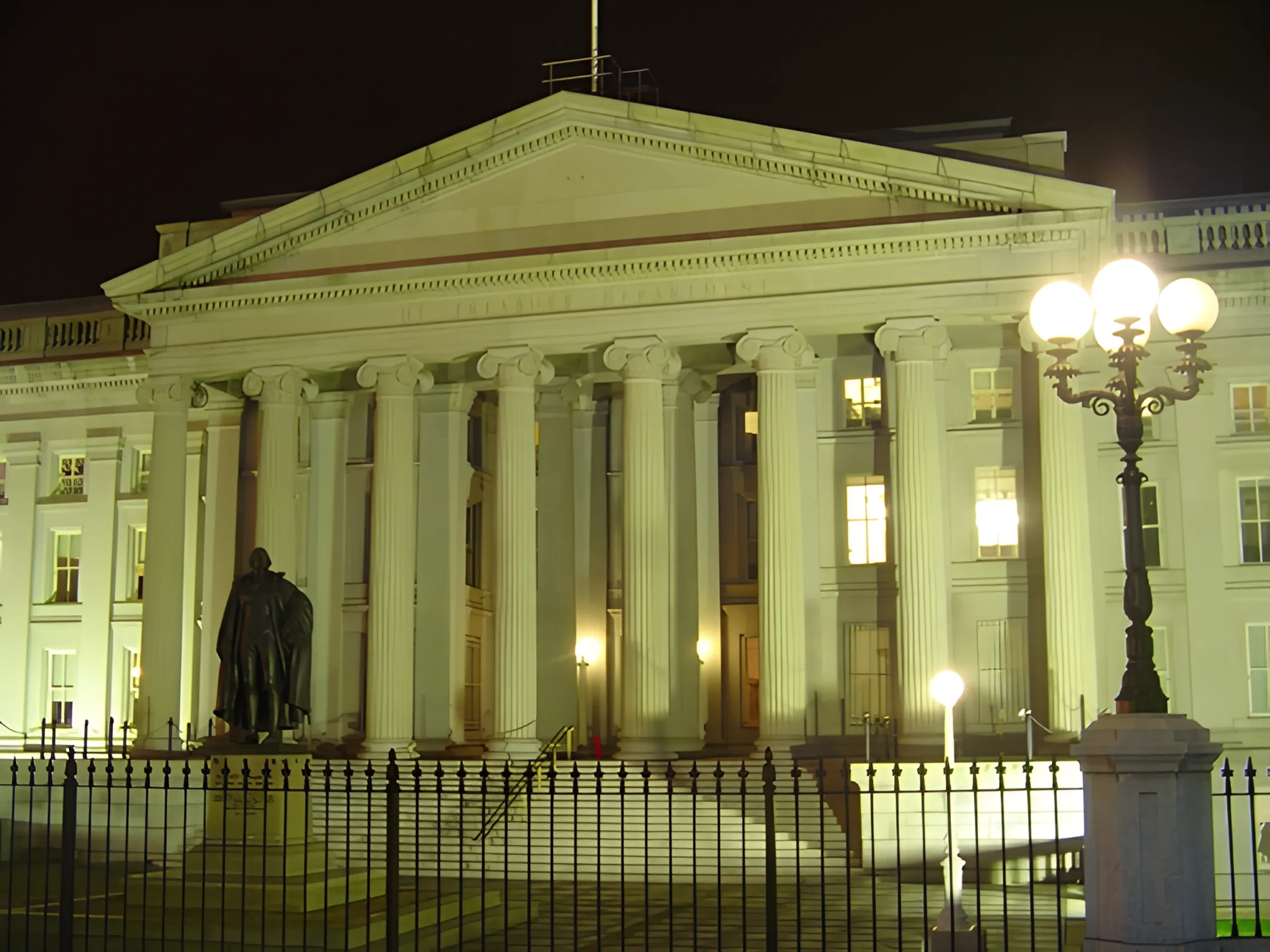

Yes, WEATHERCAP® is ideal for both historic restoration and new construction projects where long-term joint durability is required. Specific products are designated for new construction, ensuring modern buildings benefit from enhanced sealant protection and weatherproofing from the very beginning.

WEATHERCAP® is designed for straightforward installation by qualified masonry or restoration contractors. The cap's anchor is set into a bead of sealant within the joint. Supplied in 6-foot lengths, it can be easily cut and formed on-site to fit specific joint configurations. Detailed installation guidance is available.
