Masonry Movement, Control and Expansion Joint Protection

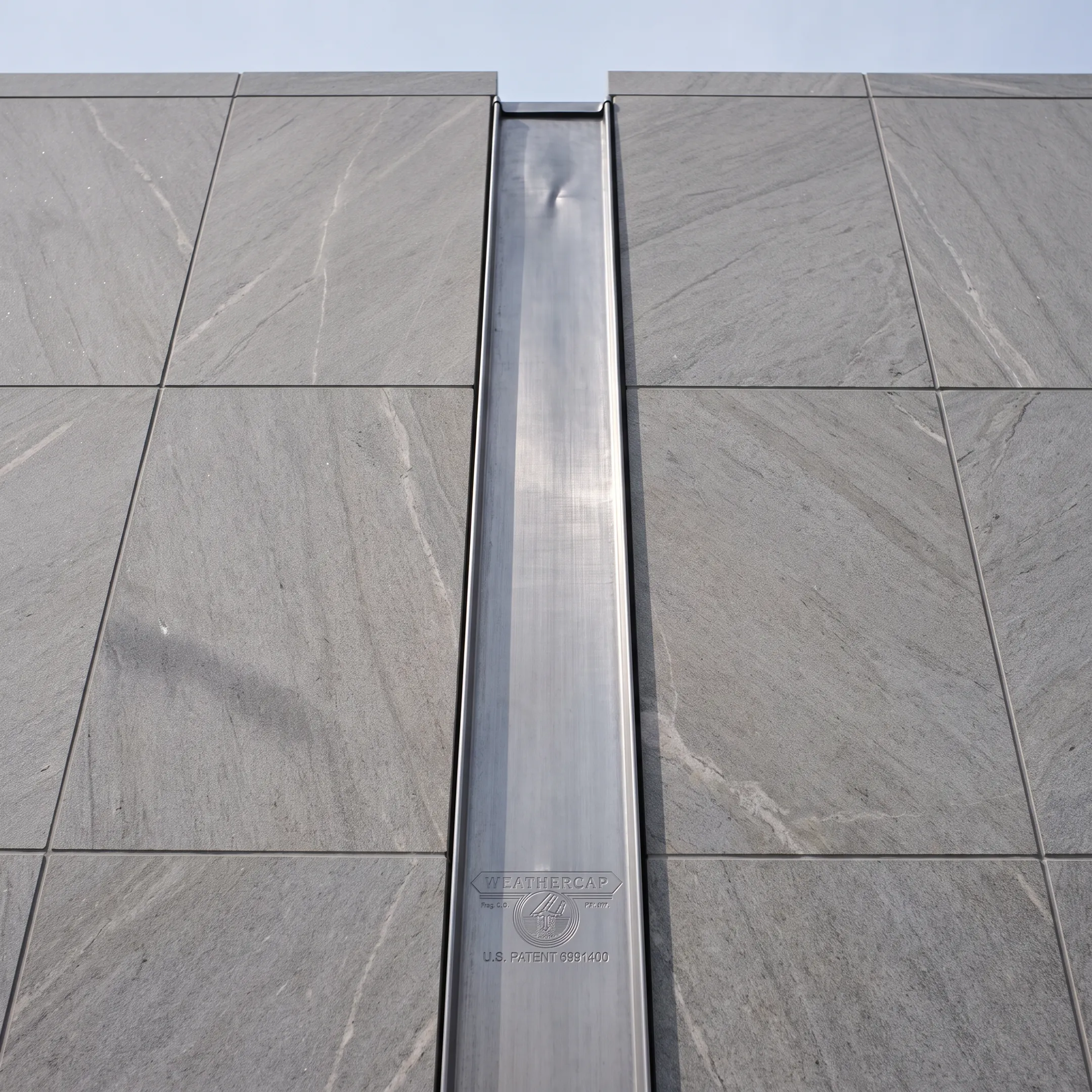

Typically, vertical expansion joints in brick veneer are spaced every 20 to 25 feet, and horizontal joints are placed at each floor line. However, this can vary based on structural design and climate. WEATHERCAP® is installed within these sealant-filled joints to protect them from failure caused by movement, settlement, and environmental exposure, ensuring their long-term effectiveness.

WEATHERCAP® is installed over the sealant, shielding it from direct exposure to UV radiation, rain, and extreme temperatures, which extends sealant life. Its soft lead construction also reduces the effective opening of the joint, minimizing stress on the sealant as the building moves and preventing margin checking, which can lead to leaks and moisture damage.

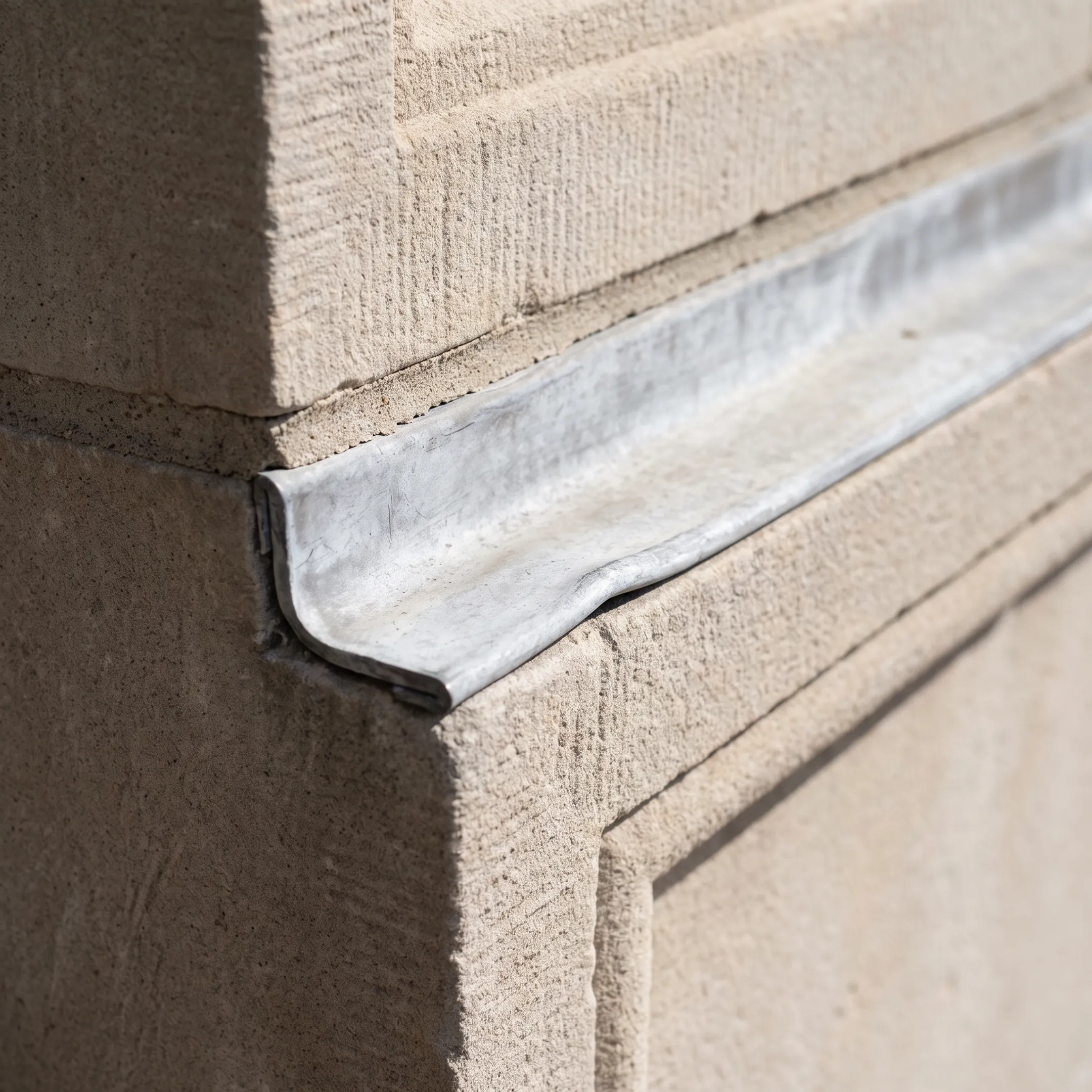

Type A is a flat cap designed for joints between masonry units on the same plane, such as cross joints on copings, lintels, and belt courses. Type B is a 90-degree cove cap used for right-angle joints, like where a window sill meets masonry, at corner junctions, or where a horizontal water table meets a vertical wall. Both provide durable, flexible protection.

Absolutely. WEATHERCAP® is ideal for historic restoration and is specified in the U.S. General Services Administration's (GSA) Historic Preservation Technical Procedures. Its soft lead composition is compatible with historic materials, and it oxidizes to a neutral grey that blends seamlessly with aged stone and masonry, preserving the building's original aesthetic.

WEATHERCAP® is designed for straightforward installation by masonry contractors as an adjunct to compatible sealants. It is supplied in 6-foot lengths that can be easily cut and shaped in the field to fit specific joint configurations. We provide comprehensive technical information, CAD drawings, and installation guidance to ensure proper application for long-lasting performance.

WEATHERCAP® is manufactured from a soft lead composition. This material is specifically chosen for its low tensile strength and low elastic modulus, which allows it to remain flexible and 'creep' into new configurations as the building moves without failing. It also resists corrosion and oxidizes to a neutral grey that blends well with stone and masonry.
