Introduction
Every building has one job before it does anything else: keep the outside out. That's the building envelope's role: the physical barrier separating conditioned interior space from wind, rain, temperature swings, and everything else nature throws at a structure.
Get the materials wrong, and you're looking at energy bills that climb every year, moisture creeping into wall cavities, and, for masonry and historic buildings especially, joint failure and deterioration that can shorten a structure's life by decades.
This guide covers what a building envelope includes, the material categories that make it work, a joint vulnerability most maintenance plans overlook, and how to choose and maintain materials that actually hold up.
Key Takeaways
- Treat the building envelope as one continuous barrier across roof, walls, openings, and below-grade systems
- Choose materials for thermal performance, moisture control, and long-term structural durability
- Expect masonry joints to fail before the walls around them when building movement goes unmanaged
- Weigh climate, movement tolerance, and code requirements before locking in material specs
What Is a Building Envelope?
A building envelope is the complete set of components (roof, exterior walls, windows, doors, and below-grade elements) that together form the boundary between a building's interior and the outdoor environment. ASHRAE's own technical glossary defines it as the outer building elements including walls, windows, doors, roofs, and floors in contact with earth.

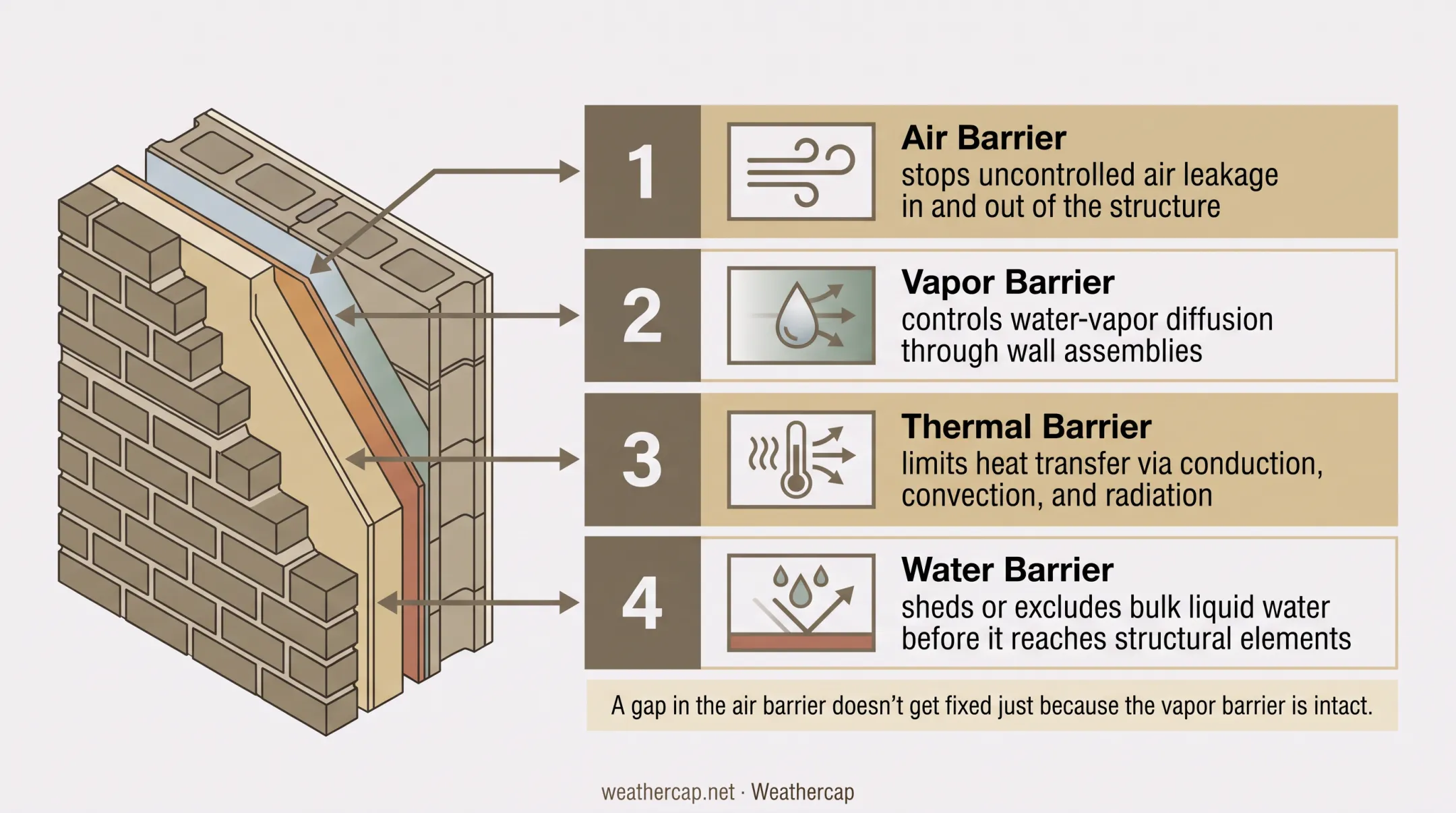

The Four Control Layers
Within that envelope, four distinct layers do the actual work:
- Air barrier: stops uncontrolled air leakage in and out of the structure
- Vapor barrier: controls water-vapor diffusion through wall assemblies
- Thermal barrier: limits heat transfer via conduction, convection, and radiation
- Water barrier: sheds or excludes bulk liquid water before it reaches structural elements
One material can sometimes perform more than one of these functions, but each layer needs to be continuous on its own terms. A gap in the air barrier doesn't get fixed just because the vapor barrier is intact.
Thermal Envelope vs. Building Envelope
You'll often hear "thermal envelope" used as if it's interchangeable with "building envelope." They aren't the same. ASHRAE defines the thermal envelope specifically as the elements enclosing conditioned space and controlling heat, air, and water-vapor transmission.
It's a subset: the insulated, air-sealed portion of the whole enclosure, which also handles daylighting, acoustics, and security.
You'll also see "building enclosure" used constantly in commercial specs and construction documents. It means the same thing as building envelope, and the two terms are used interchangeably throughout the industry.
Core Categories of Building Envelope Materials
Building envelope materials fall into a few core groups: insulation, moisture and air control layers, cladding, roofing, and fenestration. Each layer handles a different load—heat, water, air, or weather—and the assembly only works when those layers meet cleanly at joints and openings.

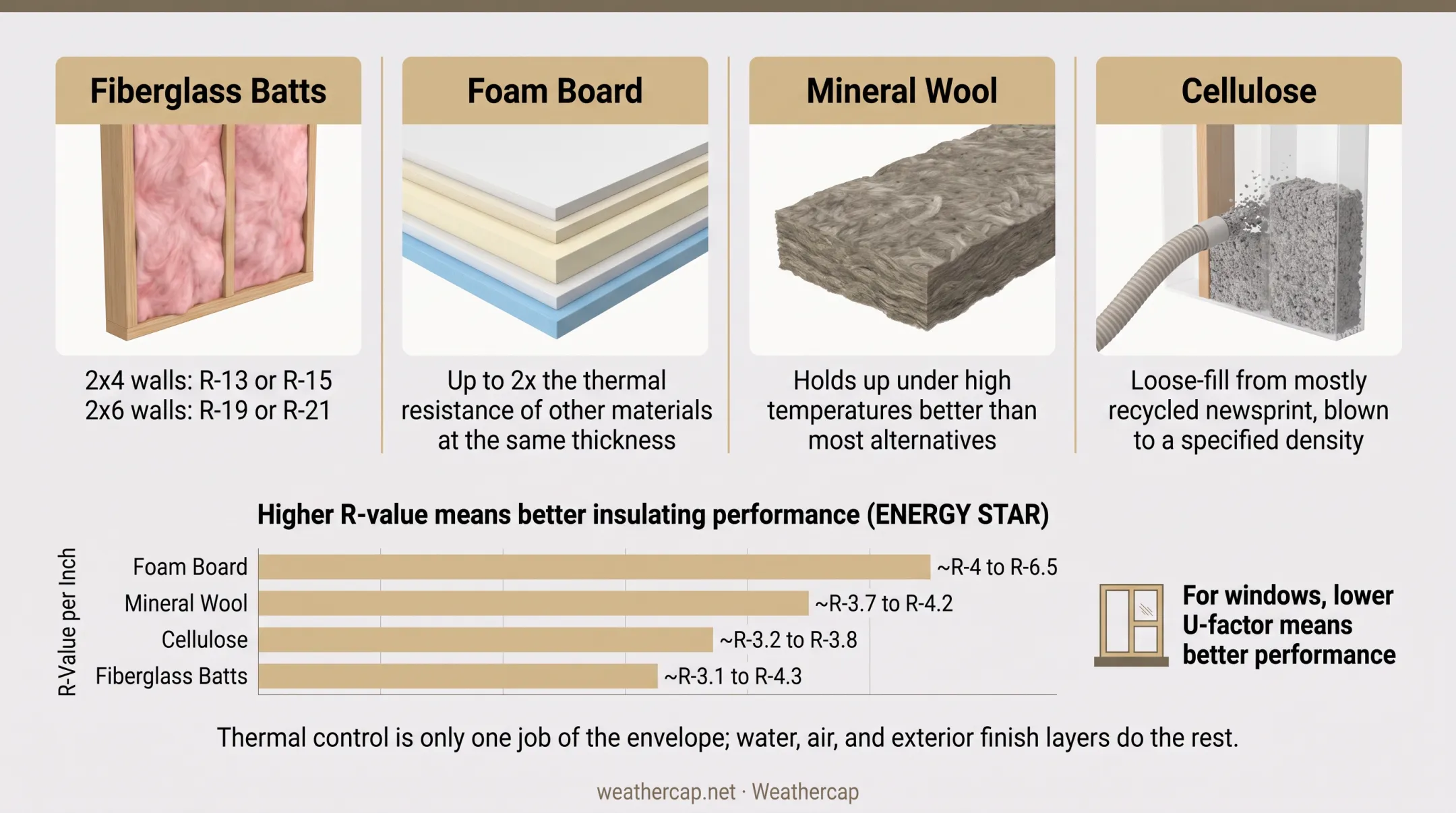

Insulation Materials
Insulation slows heat flow between inside and outside. Common types include:
- Fiberglass batts: the most common blanket insulation; 2x4 walls typically take R-13 or R-15, 2x6 walls R-19 or R-21
- Foam board (polystyrene, polyisocyanurate, polyurethane): can deliver up to twice the thermal resistance of other materials at the same thickness
- Mineral wool: holds up under high temperatures better than most alternatives
- Cellulose: loose-fill from mostly recycled newsprint, blown to a specified density
R-value is the standard metric: higher R-value means better insulating performance, according to ENERGY STAR's guidance. For windows, the comparable metric flips—lower U-factor means better performance. Thermal control is only one job of the envelope; water, air, and exterior finish layers do the rest.
Moisture Barriers, Cladding, Roofing, and Fenestration
- Moisture barriers: house wraps, liquid-applied membranes, and self-adhered membranes stop bulk water while managing vapor movement
- Joint protection and sealants: caulk, backer rod, and protective joint caps keep masonry and cladding joints closed as the building moves
- Cladding: brick, stucco, metal panels, fiber cement, and stone masonry veneer shield the wall from weather, impact, and UV
- Roofing: membranes, metal, and tile systems seal the envelope’s most exposed surface
- Windows and doors: wood, vinyl, aluminum, and fiberglass frames, each with different sealing needs where the frame meets the wall
Protecting Masonry Joints: The Overlooked Envelope Vulnerability
Masonry buildings depend heavily on caulk and sealant joints at copings, parapets, and wall junctions. These joints are, frankly, the weakest link in an otherwise durable envelope.
The International Masonry Institute points to missing, undersized, or poorly detailed movement joints as a leading cause of masonry distress, and attributes much of it to design decisions rather than material failure. Buildings move. Settlement happens. Sealants stretch only so far before they crack.
Once a joint fails, moisture gets in. The National Park Service's Preservation Brief 2 documents the resulting damage: efflorescence, disintegrating mortar, cracked joints, loose units, and damp interior walls. Left uncorrected, deterioration doesn't stop on its own.
How Weathercap® Solves the Movement Problem

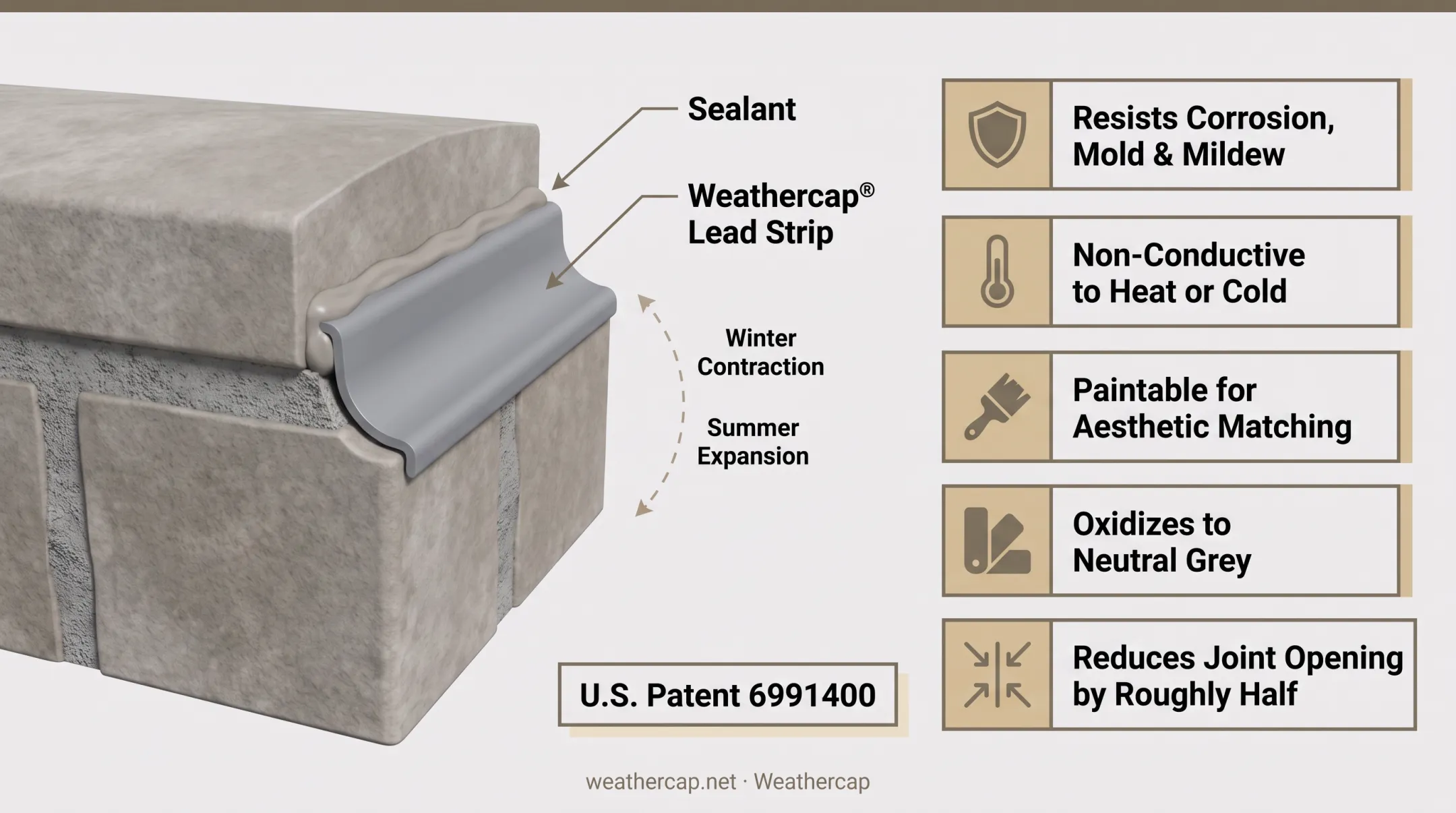

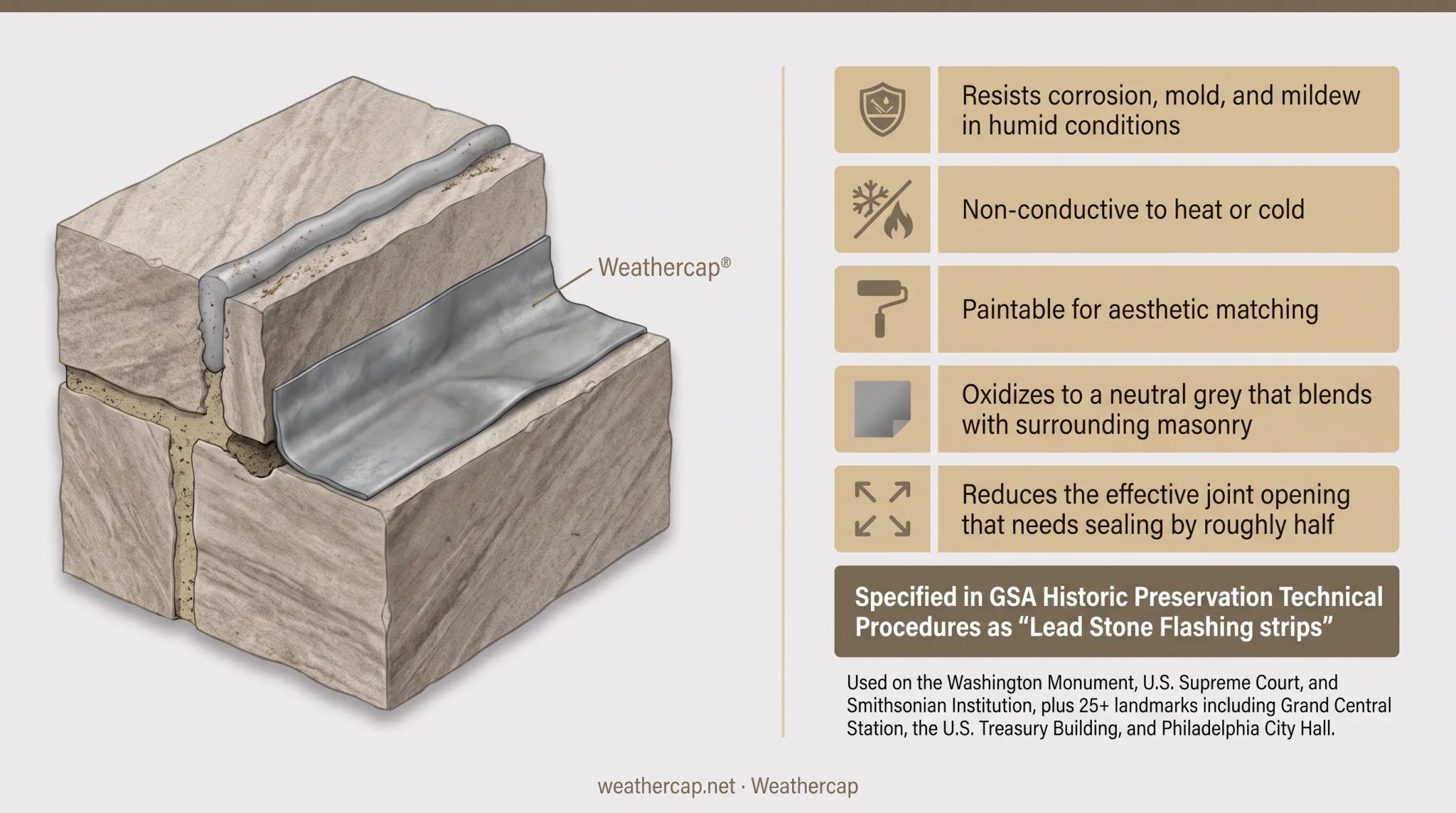

This is where Weathercap®, a patented (U.S. Patent 6991400) soft lead strip system, comes in. It's interposed within sealed masonry joints, not replacing the caulk, but protecting it.
Weathercap has low creep strength, so instead of resisting building movement, it deforms and conforms to the joint's new shape. Temperature swings actually accelerate this creep, and the low elastic modulus lets the material keep adjusting within the joint's design limits.
Unlike harder metals that spring back and reopen gaps, Weathercap stays adapted to whatever shape the joint settles into.
Other practical properties:
- Resists corrosion, mold, and mildew in humid conditions
- Non-conductive to heat or cold
- Paintable for aesthetic matching
- Oxidizes to a neutral grey that blends with surrounding masonry
- Reduces the effective joint opening that needs sealing by roughly half
Weathercap is specified by name in the GSA Historic Preservation Technical Procedures (identified there as "Lead Stone Flashing strips") for restoration work on parapets, copings, cornices, and balustrades.
It has been used on the Washington Monument, the U.S. Supreme Court, and the Smithsonian Institution, plus 25+ other landmarks including Grand Central Station, the U.S. Treasury Building, and Philadelphia City Hall.
Factors to Consider When Choosing Building Envelope Materials
Material selection depends on the building's conditions, not a generic product shortlist. Weight these factors early:
- Local climate — Temperature extremes, precipitation, UV, and wind loads drive service life. DOE guidance uses IECC climate zones so assemblies match local conditions, not national averages.
- Building movement and settlement — Joint materials need to flex without cracking. Weathercap addresses this at masonry junctions with movement-tolerant joint protection.
- Cross-material compatibility — Mismatched walls, roofs, and windows create thermal bridges and seams that break barrier continuity.
- Code compliance — ANSI/ASHRAE/IES Standard 90.1 sets minimum envelope energy requirements. On federal landmark work, GSA Historic Preservation Technical Procedures also govern material specification.
Maintenance and Inspection Best Practices
Even the right materials need upkeep. A few practical guidelines:
- Inspect seasonally, not just annually — the Brick Industry Association recommends checking joints, flashing, and cladding each season
- Check after major weather events — wind-driven rain and freeze-thaw cycles accelerate joint stress
- Budget for sealant replacement every 5–20 years, depending on exposure and product quality
- Schedule professional assessments — infrared thermography and moisture testing every 1–3 years based on building age and exposure
Standard caulk and sealant joints will eventually need resealing. Protective systems placed within the joint extend sealant life by shielding it from weather and absorbing movement stress that would otherwise crack it.
Frequently Asked Questions
What is envelope material?
Envelope materials are the physical products — insulation, cladding, barriers, sealants — that make up the roof, wall, window, and joint systems separating a building's interior from exterior conditions.
What is a building thermal envelope?
It's the insulated, air-sealed boundary of a structure that controls heat transfer. It's part of the broader building envelope, not a synonym for it.
What is another term for building envelope?
"Building enclosure" is the most common alternative, used interchangeably in commercial construction and specification documents.
How often should masonry joints be inspected or resealed?
Inspect visually at least once a season. Plan for resealing or redressing every 5-20 years depending on exposure, sealant quality, and joint protection systems in place.
Why do caulk and sealant joints fail in masonry buildings?
Building movement and settlement push sealants beyond their elastic capacity, causing checking, cracking, and moisture entry at the joint.
Can building envelope materials be used on historic restoration projects?
Yes. Specialized products like Weathercap® are specifically documented in GSA Historic Preservation Technical Procedures and have been used on landmark restorations including the Washington Monument and U.S. Supreme Court.
