Masonry Joint Deterioration and Moisture Protection

The soft lead material is flexible and has a low elastic modulus, allowing it to 'creep' and adapt to new joint configurations as a building settles or moves. This prevents the sealant from tearing or losing adhesion (margin checking), maintaining a weatherproof seal over time and extending joint life.

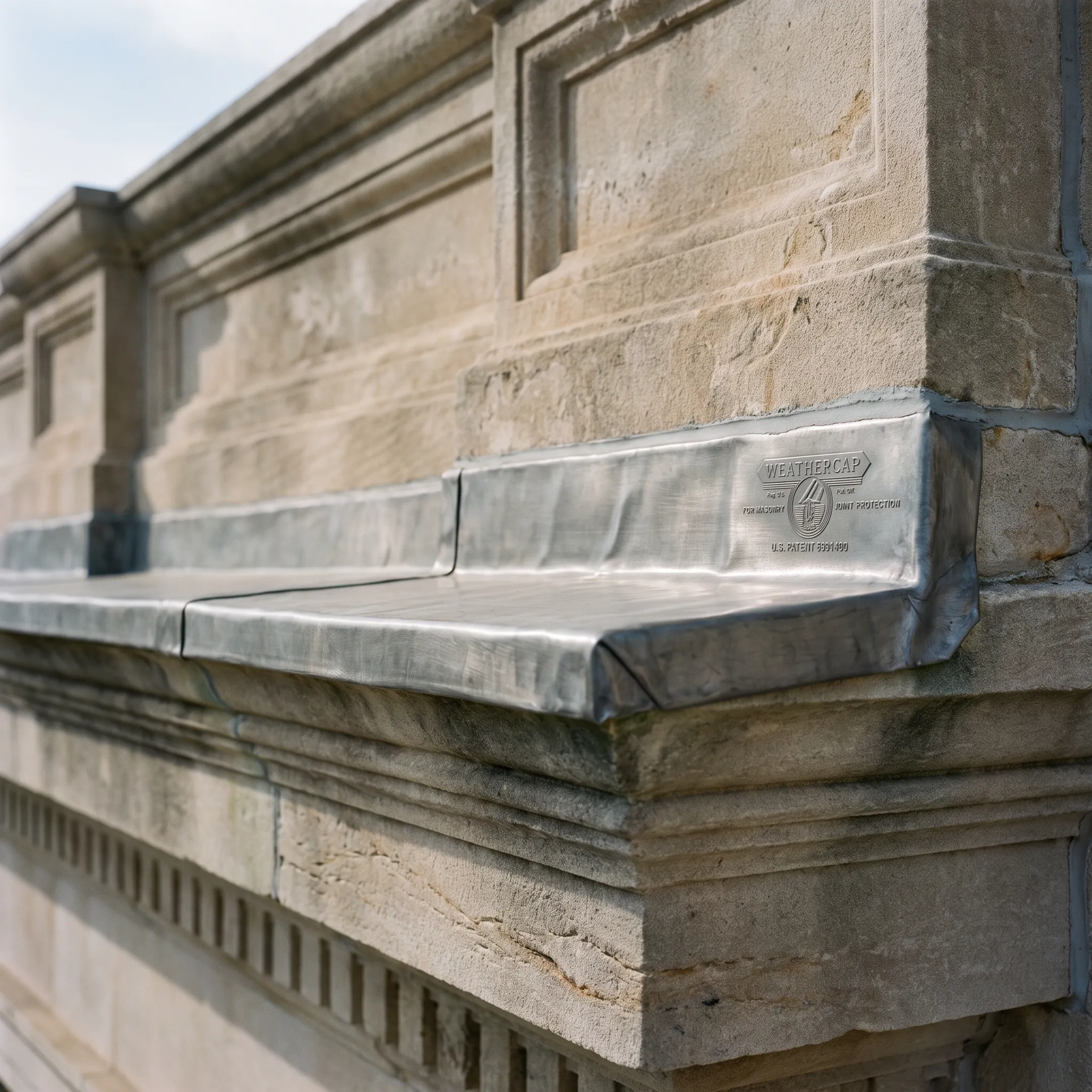

WEATHERCAP® is ideal for horizontal and vertical joints in stone and masonry. It's commonly used on copings, parapets, cornices, belt courses, window/door lintels, and entrance steps. It is not intended for vertical joints on concrete tilt-up panels, as its primary design is for projecting and horizontal elements.

Absolutely. The system is specifically designed for such applications and is even specified in the U.S. General Services Administration's Historic Preservation Technical Procedures. It has been successfully used on numerous national landmarks to preserve historic masonry and ensure long-term protection.

Yes, WEATHERCAP® can be painted to match the surrounding masonry or architectural details. If left unpainted, the lead surface quickly oxidizes to a neutral grey color that blends naturally with most stone and masonry, making it visually unobtrusive and aesthetically pleasing for historic applications.

We offer a range of stock sizes in both Type A (flat) and Type B (90-degree cove) configurations to fit joints from under 3/8-inch up to 1 1/2-inches. Custom sizes and configurations can also be manufactured upon request for unique or oversized joint conditions found in special restoration projects.

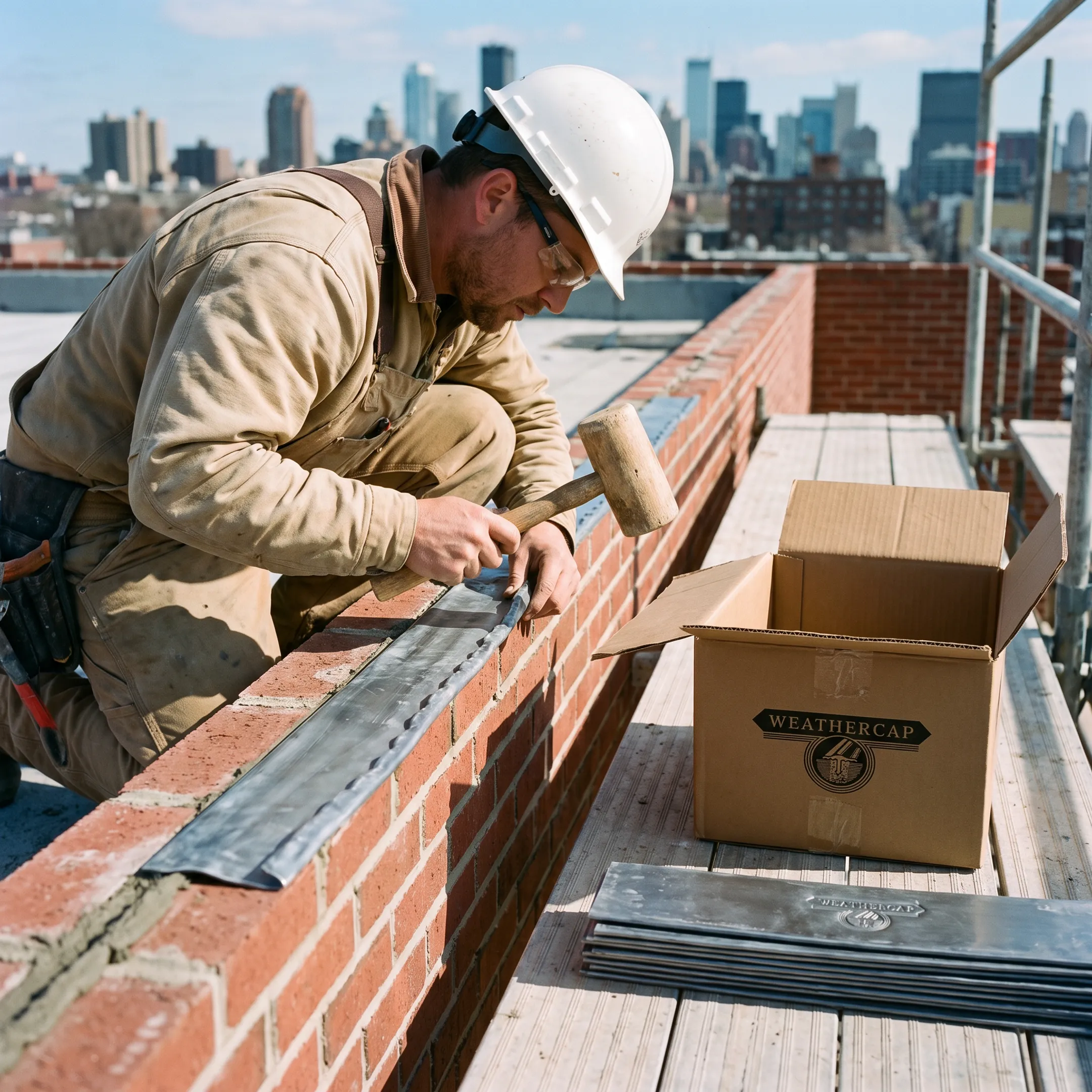

The lead cap is installed as an adjunct to a compatible masonry sealant. The joint is filled with sealant, and the splined anchor shaft of the WEATHERCAP® is pressed into the sealant. This creates a protected, durable joint. We provide detailed installation guidance, CAD drawings, and technical support for architects and contractors.
