Metal Flashing Options and Installation for Roofs

Unlike typical flashing that is nailed or screwed, WEATHERCAP® soft lead flashing is installed directly into a sealant-filled masonry joint. Its splined anchor shaft is embedded in the sealant, creating a secure, integrated, and flexible bond that moves with the structure without the need for mechanical fasteners, preventing new points of water entry.

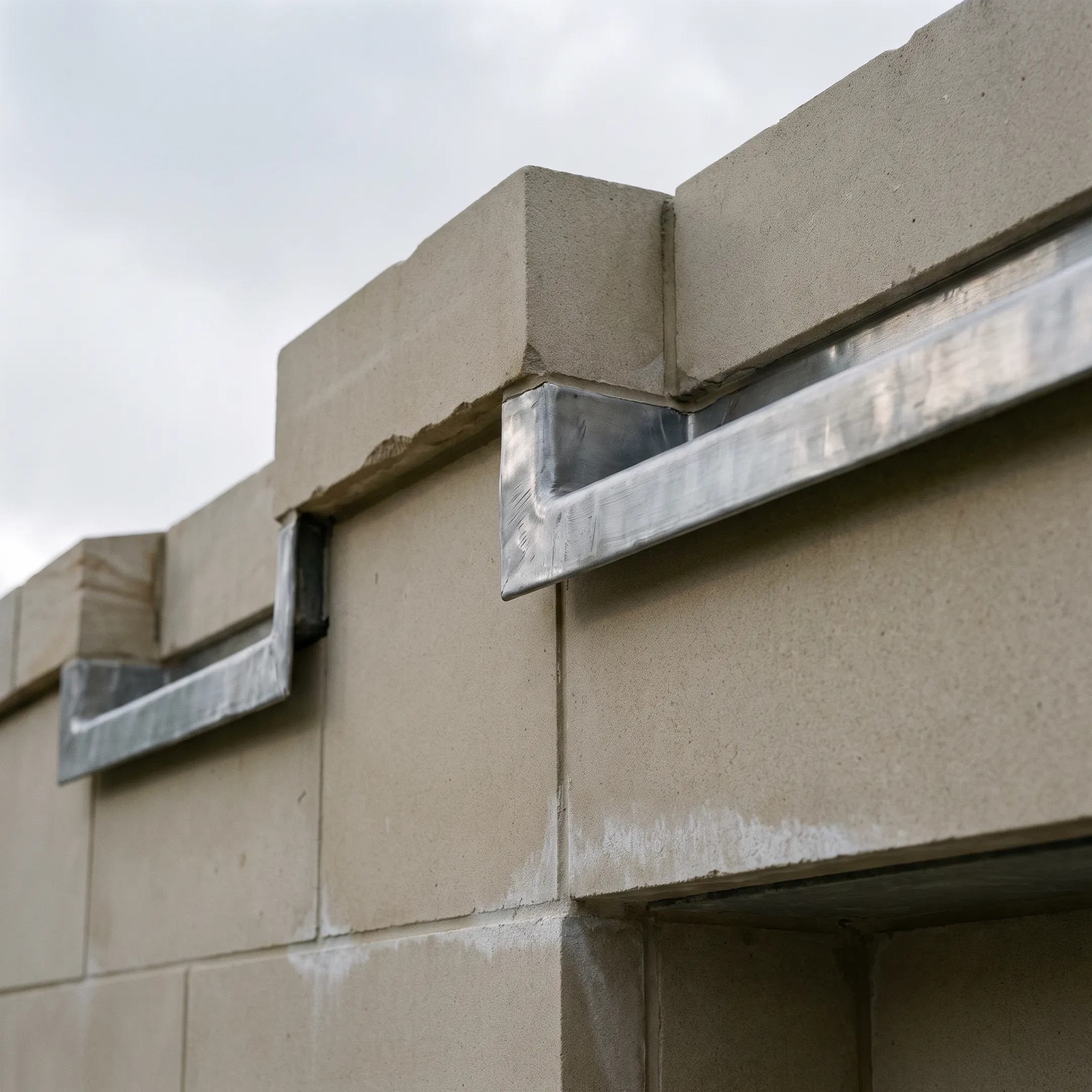

Our system is ideal for horizontal and vertical masonry joints. It is available in a Type A flat cap for same-plane joints (like on copings and cornices) and a Type B 90° cove cap for right-angle joints (like where window sills meet walls or at parapets). This versatility covers most architectural masonry conditions.

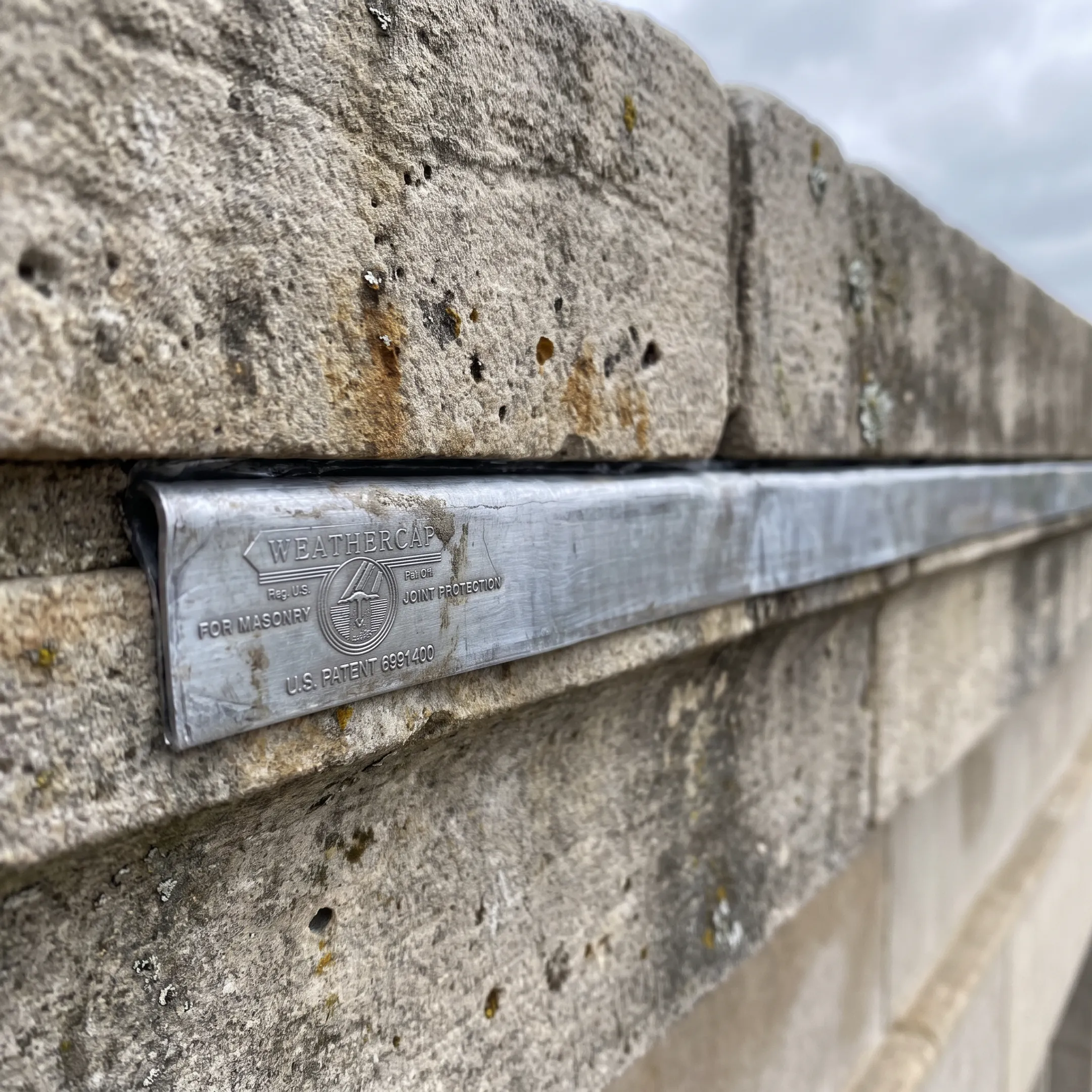

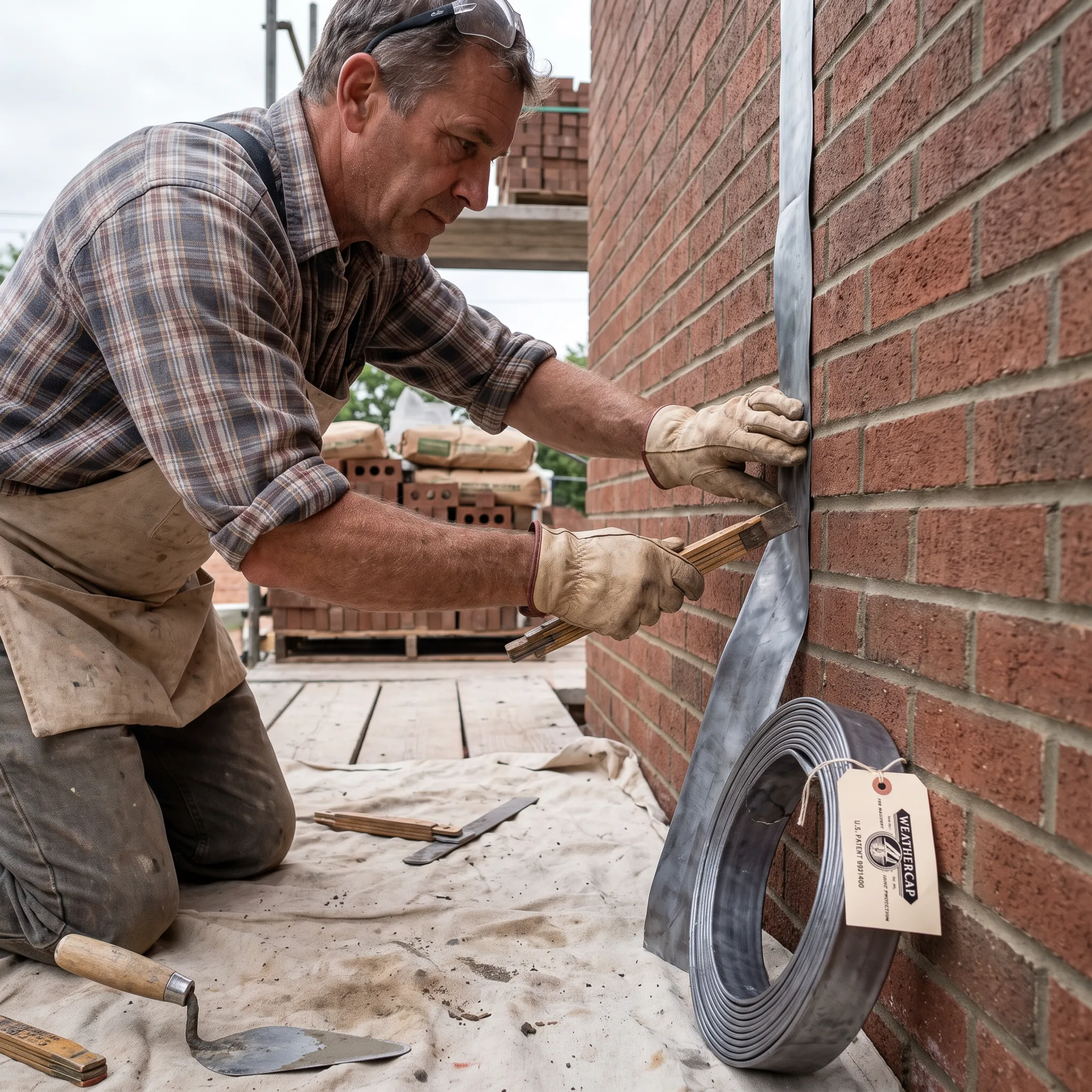

Absolutely. While renowned for its role in historic preservation, WEATHERCAP® provides long-term joint protection for new construction as well. Specifically, our A-2 Type A cap is designed for new installations, ensuring that masonry joints in modern buildings are protected from movement-related failure and moisture intrusion from day one.

By covering the sealant, WEATHERCAP® shields it from direct exposure to UV radiation, rain, and extreme temperatures, which are primary causes of sealant degradation. It also reduces the effective size of the joint opening, lessening the stress and strain on the sealant as the building moves, which significantly prolongs its effective service life.

Yes, our soft lead flashing can be painted to match the surrounding masonry or architectural trim. It naturally oxidizes to a neutral grey that blends well with most stone and mortar, but painting offers additional aesthetic flexibility for designers and architects who require a specific color match for their project's design scheme.

Type A is a flat cap designed for joints between masonry units that are on the same plane, such as the top joints of a coping or a belt course. Type B is a 90-degree cove cap designed for right-angle joints, such as where a projecting window lintel meets a vertical wall or at the base of a parapet.
