Doweled Expansion Joint: Types, Benefits, and Applications

Dowel joints in concrete include doweled contraction joints, expansion joints, and construction joints. They all use smooth dowel bars for load transfer. The primary difference is their function: contraction joints control random cracking, expansion joints accommodate thermal movement, and construction joints are placed at the end of a day's pour, connecting old and new concrete sections.

The main purpose of dowel bars is effective load transfer from one concrete slab to the next, while allowing the slabs to expand and contract independently. By distributing the load, they prevent stress concentration at the joint edges, which minimizes issues like faulting, spalling, and corner cracking. This significantly improves the durability and performance of concrete pavements and floors.

WEATHERCAP® is a soft lead cap installed over sealant in a masonry joint. It shields the sealant from UV radiation and weather, preventing degradation. Its flexibility allows it to adapt to building movement, reducing stress on the sealant and preventing 'margin checking' or adhesion failure. This unique combination of protection and flexibility significantly extends the life and integrity of the joint.

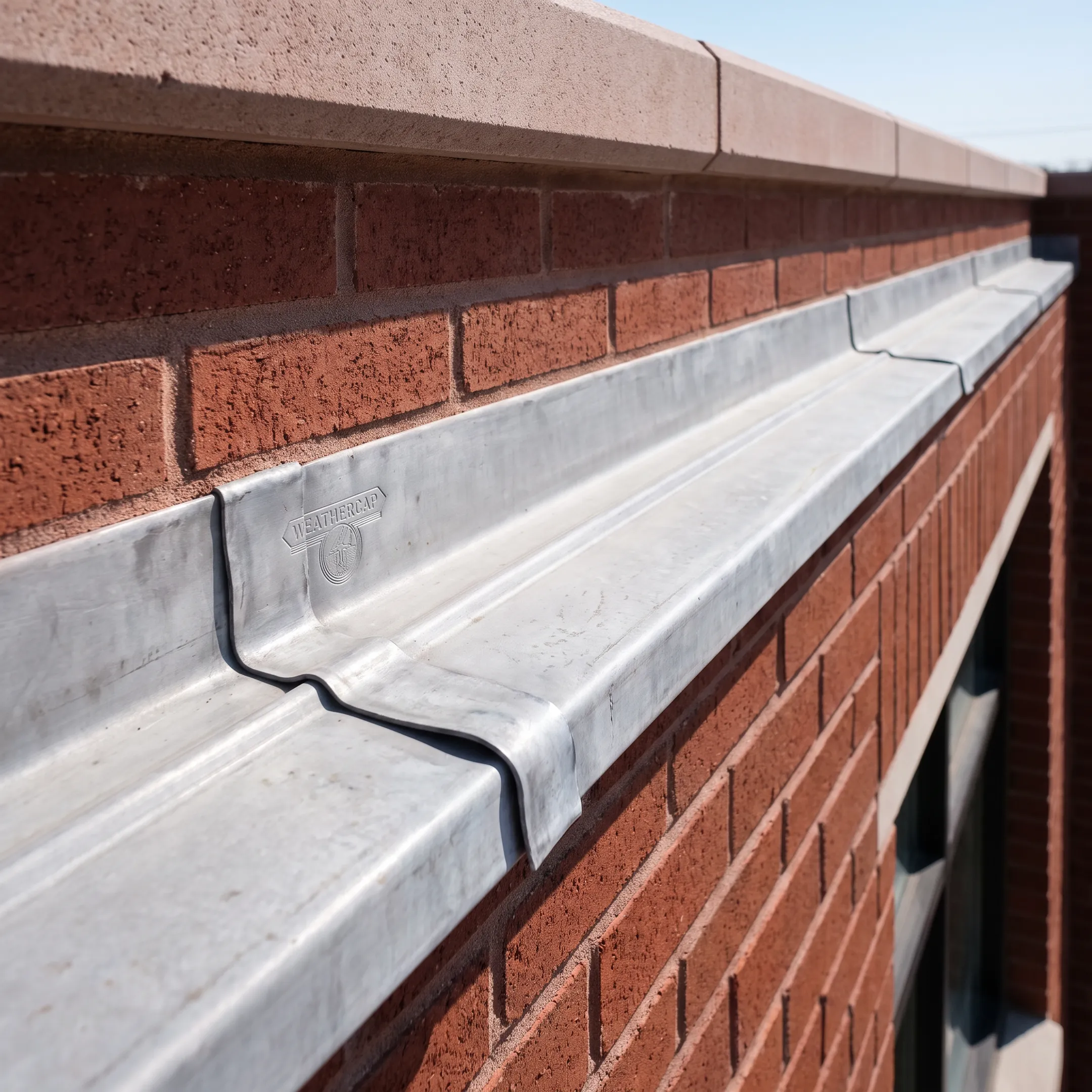

Type A is a flat cap designed for joints between masonry units on the same plane, such as the top joints of copings or across a belt course. Type B is a 90-degree cove cap used for right-angle joints, like where a horizontal stone sill meets a vertical brick wall or at the junction of stair treads and risers. Each is designed for a specific geometric condition.

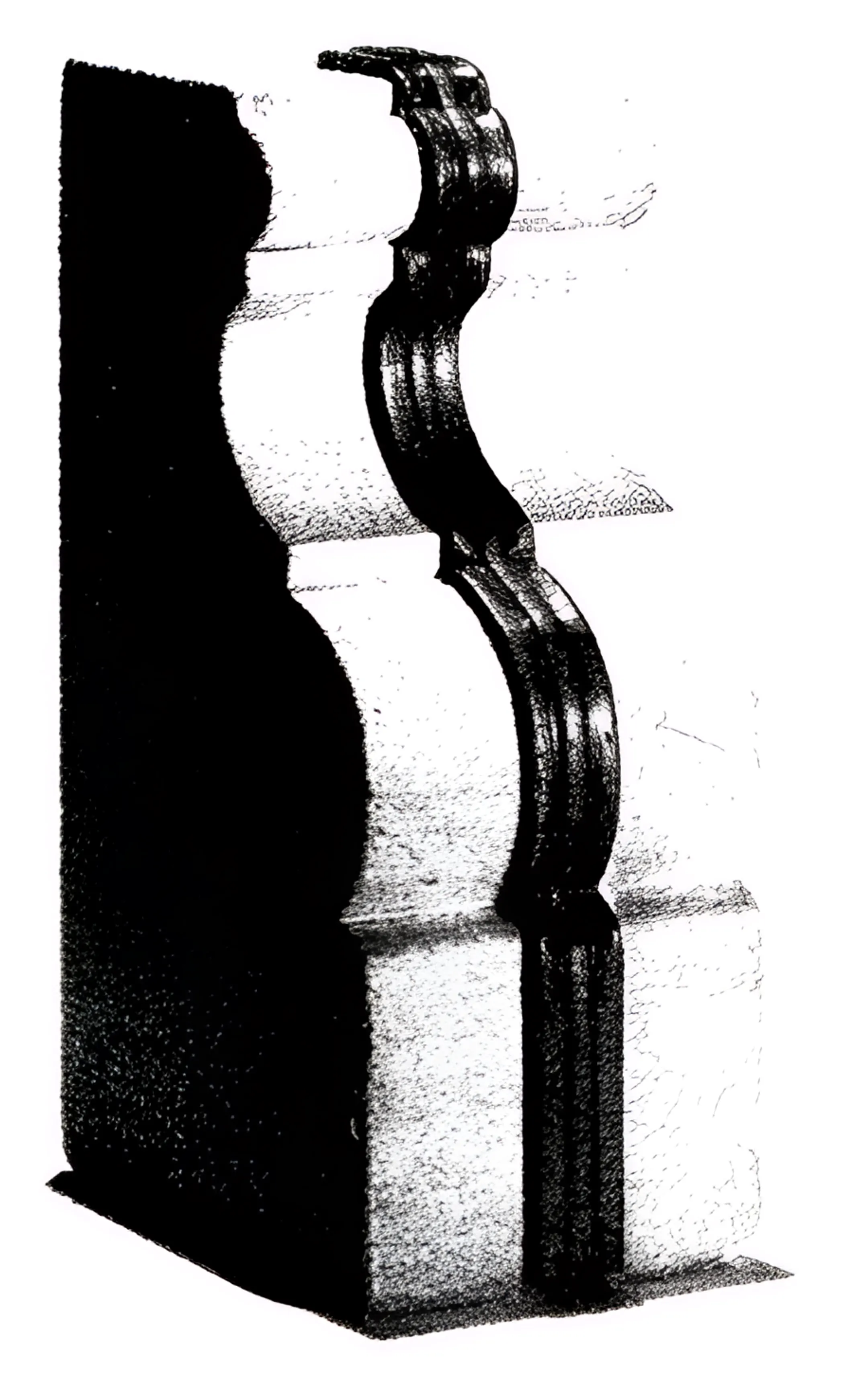

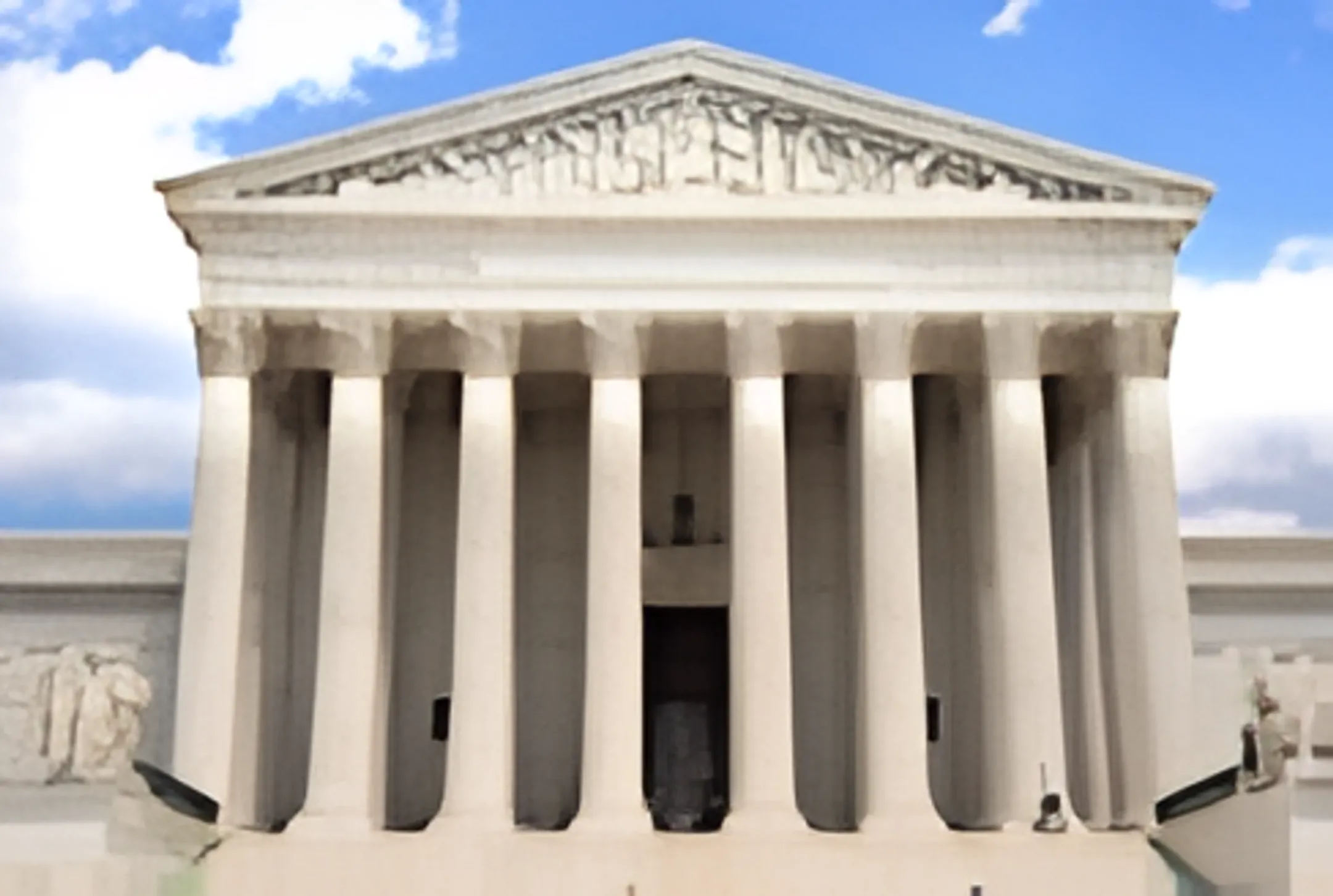

Yes, it is ideal for historic restoration. Its soft lead construction and ability to oxidize to a neutral grey color blend seamlessly with historic masonry. It is specified in the U.S. General Services Administration's Historic Preservation Technical Procedures and has been successfully used on numerous national landmarks, including the Washington Monument and the U.S. Supreme Court building.

Absolutely. While WEATHERCAP® naturally oxidizes to a neutral grey that complements most masonry and stone, it can be painted to match any specific color scheme. The paint adheres well to the lead surface, allowing for complete aesthetic integration with the building's facade. This ensures that its protective function does not compromise the intended architectural design or color palette.
